Do worm gears reduce speed? The short answer is an emphatic yes. In fact, speed reduction is their primary mechanical function. However, viewing them solely as speed reducers overlooks their equally critical ability to multiply torque and change drive direction by 90 degrees. Engineers often select a worm gearbox not just because it slows a motor down, but because it provides massive mechanical advantage in a compact package that other gear types cannot easily replicate.
The engineering reality, however, involves a significant trade-off. While these units offer the highest reduction ratios in the smallest footprint, they sacrifice efficiency compared to helical or planetary systems. This creates a decision matrix for procurement officers and design engineers. You must evaluate whether the low initial cost, quiet operation, and self-locking safety features outweigh the thermal inefficiencies inherent in the design. This article guides you past basic definitions and into the technical criteria necessary for selecting the right drive for your application.
Key Takeaways
Ratio Efficiency: A single-stage worm gear can achieve reduction ratios (up to 100:1) that would require multiple stages in other gear types.
The Safety Factor: The inherent "self-locking" capability acts as a secondary brake, critical for hoisting and vertical conveyor compliance.
Thermal Management: Sliding friction generates significant heat; selecting the correct lubrication (ISO 460/680) and housing material is non-negotiable for longevity.
TCO Reality: Lower upfront costs can be offset by higher energy consumption; best suited for intermittent duty cycles rather than continuous 24/7 high-speed operations.

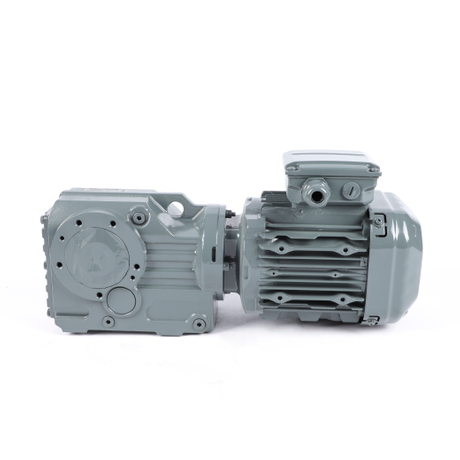

The Mechanics of Speed Reduction: How High Transmission Worm Gearboxes Work
Understanding how a worm drive functions requires looking at the unique interaction between its two main components. The system consists of a worm—essentially a screw thread on a shaft—and a worm wheel, which resembles a standard spur gear. As the input shaft rotates, the threads on the worm slide across the teeth of the wheel, pushing it forward. This action converts the high-speed, low-torque rotational motion of the motor into low-speed, high-torque output.
The Geometry of Reduction
The calculation logic for speed reduction in these units is straightforward yet powerful. It is determined by the number of threads, or "starts," on the worm versus the number of teeth on the mating gear. For example, if you use a single-start worm to drive a 60-tooth gear, the ratio is exactly 60:1. The worm must complete 60 full revolutions to advance the gear by one complete turn.
This geometry allows a High transmission worm gearbox to achieve massive reductions within a single housing. To achieve a similar 60:1 ratio with standard spur or helical gears, you would typically need two or three stages of gearing, significantly increasing the physical footprint. By using a worm drive, engineers can save valuable factory floor space, fitting high-torque drives into tight machinery envelopes where inline drives simply would not fit.
Sliding vs. Rolling: The Friction Factor
The defining characteristic of worm mechanics is the type of contact involved. Standard spur and helical gears operate primarily through rolling contact. The teeth meet and roll over one another, which minimizes friction and heat. Worm gears differ fundamentally because they rely on sliding friction. The worm screw slides continuously across the face of the gear teeth.
This sliding action creates two distinct outcomes:
Acoustic Performance: The sliding mesh is exceptionally smooth, resulting in operation that is significantly quieter than the "clacking" often associated with spur gears. This makes them ideal for noise-sensitive environments like theaters, elevators, or food processing plants.
Lubrication Demands: The friction generates substantial heat. The oil film is constantly being wiped away by the sliding action, necessitating specific lubrication strategies that differ from standard gearboxes.
Strategic Evaluation: When to Select a Worm Gearbox Over Helical or Planetary
Choosing the right transmission is rarely about finding the "best" gear, but rather the best fit for the specific constraints of the project. While planetary gears offer higher efficiency, worm drives dominate specific niches due to their unique mechanical behaviors.
The "Self-Locking" Advantage (Safety & Compliance)
One of the most valuable features of this design is the potential for self-locking. In many configurations, the output gear cannot back-drive the input worm. This inability depends heavily on the lead angle of the worm and the coefficient of friction. Generally, high-ratio units with a shallow lead angle resist back-driving most effectively.
The business outcome of this feature is substantial cost savings and enhanced safety. In applications like lifts, inclined conveyors, and automatic doors, the gearbox acts as a natural brake. It eliminates the need for expensive external braking systems to hold a load in place when power is cut. For industries governed by strict safety standards, such as OSHA regulations for hoisting, this acts as a fail-safe mechanism against gravity loads. If the motor brake fails, the gearbox itself prevents the load from free-falling.
Cost vs. Precision (The Brushless Motor Debate)
Modern industrial trends often push toward direct-drive systems using high-torque brushless DC motors to eliminate gearing altogether. Why, then, do engineers still specify mechanical worm drives? The answer lies in the balance between cost and required precision.
| Feature | Worm Gearbox System | Direct-Drive Servo System |
| Initial Cost | Low (Commodity hardware) | High (Complex electronics/magnets) |
| Torque Density | Excellent (Mechanical multiplication) | Good (Requires large motor size) |
| Positioning Precision | Moderate (Backlash exists) | Extreme (Sub-millimeter accuracy) |
| Holding Ability | Passive (Self-locking mechanics) | Active (Requires power to hold position) |
The verdict is clear for many applications. Worm gears remain the superior choice for high-torque, cost-sensitive, "brute force" applications. If your conveyor does not require sub-millimeter positioning accuracy, investing in a complex servo system significantly increases Total Cost of Ownership (TCO). A worm drive provides the necessary muscle at a fraction of the price.
Shock Load Resistance
Industrial environments are unpredictable. Jams happen. A stone might fall into a crusher, or a package might block a conveyor. In these scenarios, the material properties of the worm wheel provide a hidden advantage. The wheel is typically made of softer bronze, while the worm is hardened steel. This bronze acts as a shock absorber. Under sudden shock loads, the bronze teeth can deform slightly or even shear sacrificially, protecting the more expensive motor and the driven equipment from catastrophic damage.
Critical Selection Criteria: Housing, Sealing, and Internal Geometry
Once you decide a worm gear is the right architecture, you must select the specific unit. The market is flooded with generic options, but reliability lies in the details of sealing and internal geometry.
Structural Integrity & Sealing
A major pain point for maintenance teams is leakage. In harsh environments, such as dusty aggregate plants or wash-down food processing lines, contaminants try to get in, and lubricant tries to get out. If abrasive dust enters the gearbox, it turns the oil into a grinding paste that destroys the soft bronze gear within weeks.
The solution is to prioritize a fully sealed structure worm gearbox. You should look for designs featuring double-lip oil seals. These seals utilize an inner lip to retain oil and an outer lip to repel dust and water. Closed-loop designs that account for internal pressure buildup during operation are also essential. As the box heats up, air expands; without proper venting or sealed expansion capabilities, this pressure will force oil past even the best seals.
Throat Designs (Impact on Load Capacity)
Not all worm gears contact each other in the same way. The shape of the gear teeth, known as the "throat," dictates how much load the unit can handle.
Non-Throated: These are the most basic and cheapest options. The worm is a simple cylinder, and the gear is a simple cylinder with angled teeth. They have only point contact, leading to high wear and low load capacity. Ideally, avoid these for power transmission.
Single-Throated: In this common design, the worm wheel is concave, wrapping slightly around the worm. This changes the contact from a point to a line, significantly increasing load capacity and durability.
Double-Throated (Hourglass): This is the premium option. Here, the worm is hourglass-shaped to wrap around the gear, and the gear wraps around the worm. This maximizes the contact area, distributing stress over more teeth. It offers the highest torque, best shock resistance, and lowest wear rate.
Material Pairing (The Sacrificial Component)
Standard metallurgy for these gearboxes involves a hardened steel worm shaft paired with a phosphor bronze gear. This pairing is intentional. Steel-on-steel would likely seize or gall under the intense heat of sliding friction. Bronze has natural lubricity and dissipates heat effectively. Furthermore, this design logic follows a "sacrificial component" philosophy. It is far cheaper and easier to replace a worn bronze gear than it is to replace a hardened steel worm shaft or the motor connected to it.
Implementation Risks: Lubrication, Heat, and Efficiency
While worm gears are robust, they are not "install and forget" devices like some other gear types. Their reliance on sliding friction introduces thermal and efficiency challenges that must be managed during the implementation phase.
The Efficiency Curve
Engineers must be transparent about energy loss. Unlike planetary gears, which maintain high efficiency (95%+) regardless of ratio, worm gear efficiency drops precipitously as the reduction ratio increases. A low-ratio unit (e.g., 5:1) might be 90% efficient. However, high-ratio units (e.g., 60:1 or higher) may operate at only 50-60% efficiency.
This data is crucial for motor sizing. If your application requires 1 HP of output power at the conveyor shaft, and you are using a 60:1 worm box with 50% efficiency, you cannot use a 1 HP motor. You would need a 2 HP motor to overcome the thermal losses in the gearbox. Ignoring this efficiency curve is a leading cause of motor under-sizing and system failure.
The Lubrication Mandate
Lubrication failure causes the majority of worm gear breakdowns. Because the teeth slide rather than roll, the lubricant must maintain a strong film barrier to prevent metal-to-metal contact.
Viscosity Requirements: Standard gear oils often lack the film strength for this application. Worm drives typically require high-viscosity oils, such as ISO 320, 460, or even 680.
The "Yellow Metal" Risk: You must be vigilant regarding additives. Many extreme pressure (EP) gear oils use active sulfur or phosphorus to protect steel. However, active sulfur chemically attacks and corrodes bronze (a "yellow metal") at high operating temperatures. This corrosion pits the gear teeth, accelerating failure.
Compounded Oils: Ideally, use compounded cylinder oils or PAG (Polyalkylene Glycol) synthetics. These resist thermal breakdown and provide the necessary lubricity without corroding the bronze wheel.
Sourcing Strategy: Evaluating a Worm Gearbox Manufacturer
The market quality for these components varies wildly. When sourcing, you need to look beyond the catalog specs to the manufacturing processes behind the product.
Manufacturing Tolerances
Surface finish is critical. A rough finish on the steel worm acts like a file against the soft bronze gear. Over time, a poorly machined worm will grind the gear teeth away, leading to excessive play and eventual failure. You should look for a manufacturer that provides Ra surface finish metrics, proving they grind and polish the worm threads to a mirror-like finish to minimize friction.
Testing Protocols
Reliability is proven through testing, not promises. Demand evidence of specific testing protocols from your worm gearbox manufacturer. reputable suppliers conduct leak testing on every unit to ensure seal integrity. Furthermore, ask about their "run-in" procedures. Top-tier manufacturers pre-run their gears to ensure mesh quality and check for thermal anomalies before the product ever leaves the factory.
Modularity & Mounting
Integration costs can exceed the cost of the hardware itself. Suppliers that offer modular designs save you money. Look for availability of diverse mounting options, such as hollow shafts, torque arms, and output flanges. A hollow shaft design, for instance, allows you to mount the gearbox directly onto the driven machine shaft, eliminating the need for couplings, base plates, and alignment labor.
Conclusion
Worm gears effectively reduce speed, but their utility extends far beyond simple reduction. They offer unique benefits in torque multiplication, braking safety, and noise reduction that other gear types cannot match. While they do not offer the energy efficiency of planetary systems, they remain the dominant choice for applications requiring compact, cost-effective high-torque transmission.
The final verdict is clear: Worm gears are the ideal solution for intermittent, space-constrained, or vertical-lift applications where efficiency can be traded for cost-effectiveness and safety. However, this trade-off requires careful management of lubrication and thermal loads.
Before specifying your next drive, review your application’s duty cycle and thermal limits. Do not ignore the efficiency loss at high ratios. For high-stakes industrial environments, consult with a manufacturer to verify thermal ratings and seal integrity, ensuring your machinery runs smoothly for years to come.
FAQ
Q: Do worm gears wear out faster than other gears?
A: Generally, yes. Because they rely on sliding friction rather than rolling contact, the bronze worm wheel experiences higher wear rates than steel spur gears. However, the bronze is designed as a "sacrificial" component. It wears down to protect the harder, more expensive steel worm shaft. With proper high-viscosity lubrication and correct service factors, they can still provide many years of reliable service.
Q: Can a worm gearbox stop a load from falling?
A: Yes, in many cases, due to "self-locking." Friction between the worm and gear prevents the output load from back-driving the input. However, this should not be considered a fail-safe brake for human safety. Vibrations can break the friction hold. For critical safety applications like elevators or hoists, a redundant physical brake is always required by safety standards.
Q: Why do worm gearboxes get so hot?
A: Heat is the byproduct of inefficiency caused by sliding friction. As the worm threads slide against the gear teeth, mechanical energy is lost as heat. High-ratio boxes have more sliding contact and lower efficiency (sometimes 50-60%), converting a significant portion of input power directly into thermal energy, which the housing must dissipate.
Q: What is the difference between single-start and multi-start worms?
A: A single-start worm has one continuous thread, offering the highest reduction ratio (e.g., 60:1) and the best self-locking capabilities but lower efficiency. Multi-start worms have two or more threads intertwined. They provide lower reduction ratios and higher speeds. Multi-start worms are more efficient but are less likely to be self-locking because the lead angle is steeper, allowing the load to back-drive the motor.
Q: Can I run a worm gearbox in reverse?
A: Yes, you can reverse the direction of the input motor to reverse the output direction. However, you typically cannot "back-drive" it—meaning you cannot turn the output shaft to drive the input motor (acting as a speed increaser). This irreversibility is the core of the self-locking feature but requires checking the specific lead angle of your unit.
