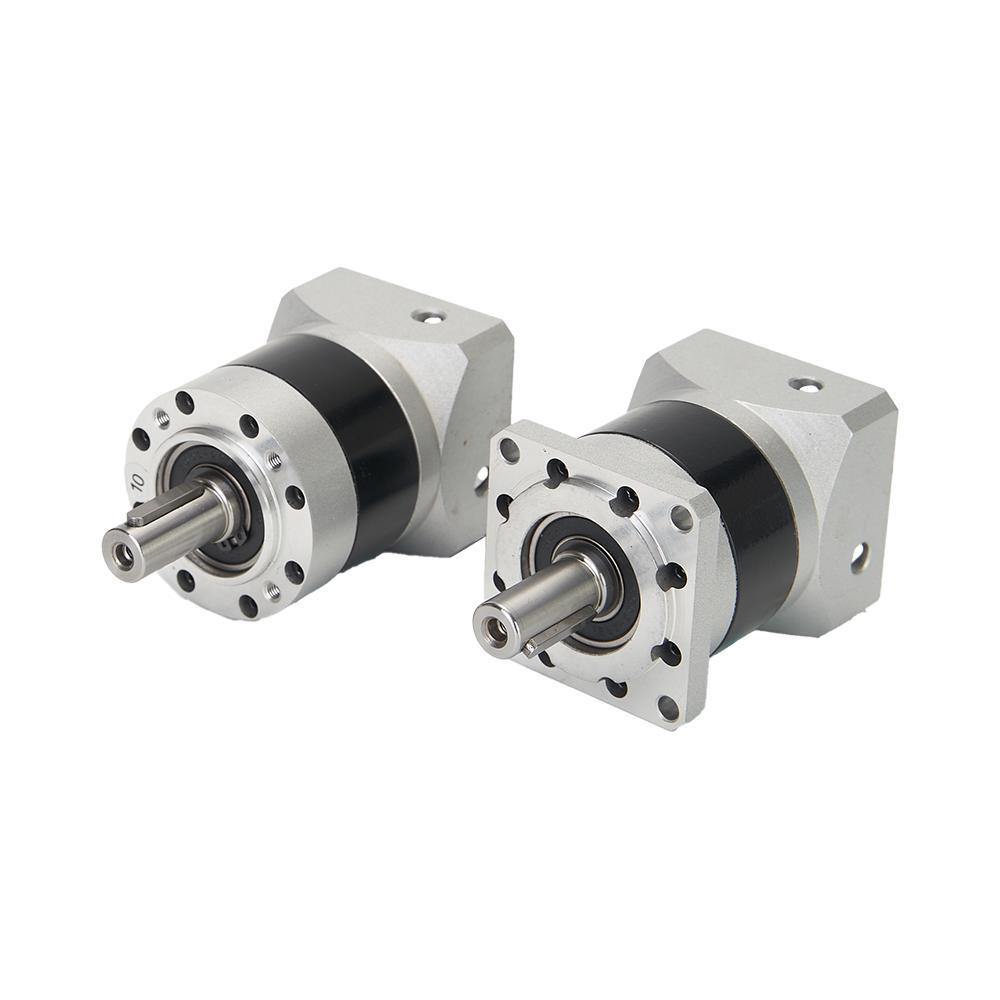

Good Service Right Angle Reducer High Precision Planetary Gearbox

Product Description

Engineered to resolve the most demanding spatial constraints without compromising on kinetic performance, this right angle planetary gearbox delivers exceptional motion control for advanced automation systems. The compact 90-degree structural design optimizes the physical footprint of your machinery, allowing for straightforward integration into confined environments where traditional inline reducers simply cannot fit. By redirecting the power transmission at a right angle, engineers can design more compact, space-efficient equipment layouts, ultimately saving valuable floor space in manufacturing facilities. Buyers can select from highly versatile output configurations, including solid shaft, hollow shaft, standard flange, and NEMA adaptations. This variety ensures a precise mechanical match for diverse operational frameworks, eliminating the need for costly secondary adapters.

At the core of its kinetic profile is an ultra-low to zero backlash transmission capability. This critical feature guarantees the smooth, stutter-free operation essential for complex robotics, multi-axis CNC machining centers, and automated positioning systems requiring exacting precision. When executing rapid directional changes, the minimal backlash ensures that motion profiles remain accurate and repeatable, directly improving the output consistency of the driven machinery. The internal architecture features heavy-duty bearings and a reinforced gear train capable of handling high dynamic loads and sudden torque spikes. With a comprehensive reduction ratio range spanning from 3:1 up to 1000:1, this gearbox provides substantial torque multiplication while maintaining structural integrity over an extended operational lifespan.

Installation is further streamlined through standardized mounting flanges and keyless locking rings. This modular approach facilitates rapid, secure coupling with a vast majority of servo motors, stepper motors, and linear actuators available on the market today. By utilizing keyless locking mechanisms, the connection between the motor and the gearbox is perfectly concentric, minimizing assembly time and drastically reducing potential alignment errors during equipment integration.

TaiBang Motor Industry Group Co., Ltd.

The main products is  induction   motor, reversible motor,  DC brush gear  motor,  DC brushless gear motor ,  CH/CV big gear motors ,  Planetary gear motor ,Worm gear motor  etc, which used widely in various fields of manufacturing pipelining, transportation, food, medicine, printing, fabric, packing, office, apparatus, entertainment etc, and is the preferred and matched product for automatic machine.

Beyond our standard portfolio, we offer comprehensive flexible customization and specialized solutions tailored to unique procurement demands. We understand that standard off-the-shelf products may not always fulfill the stringent requirements of highly specialized industrial applications. Whether your project requires economical standard components for large-scale deployment or ultra-high-precision multi-series configurations for specialized machinery, our engineering team is equipped to deliver non-standard dimensions, unique output shafts, and environmentally hardened units. To accelerate your equipment development and integration cycles, we provide extensive research and development support from the initial design phase through to final implementation. Procurement specialists and mechanical engineers can access complete 3D CAD model downloads to simulate fitment before purchase, utilize our intuitive online sizing tools for accurate load calculations, and collaborate directly with our technical experts. This collaborative approach ensures the selected drive mechanisms perfectly align with your operational specifications, reducing trial-and-error and accelerating your time-to-market.

Industry Applications & Technical Integration

Designed specifically for sectors where spatial limitations intersect with the need for high-dynamic performance, this high-precision right angle reducer serves as a critical component in top-tier manufacturing fields. The rigid exterior casing and meticulously machined internal gears provide a tangible sense of durability. When handling the unit, the cool, smooth finish of the industrial-grade housing indicates exact manufacturing tolerances. During operation, the unit produces a quiet, controlled hum even under maximum load conditions, free from the grinding or rattling often associated with lesser transmission components.

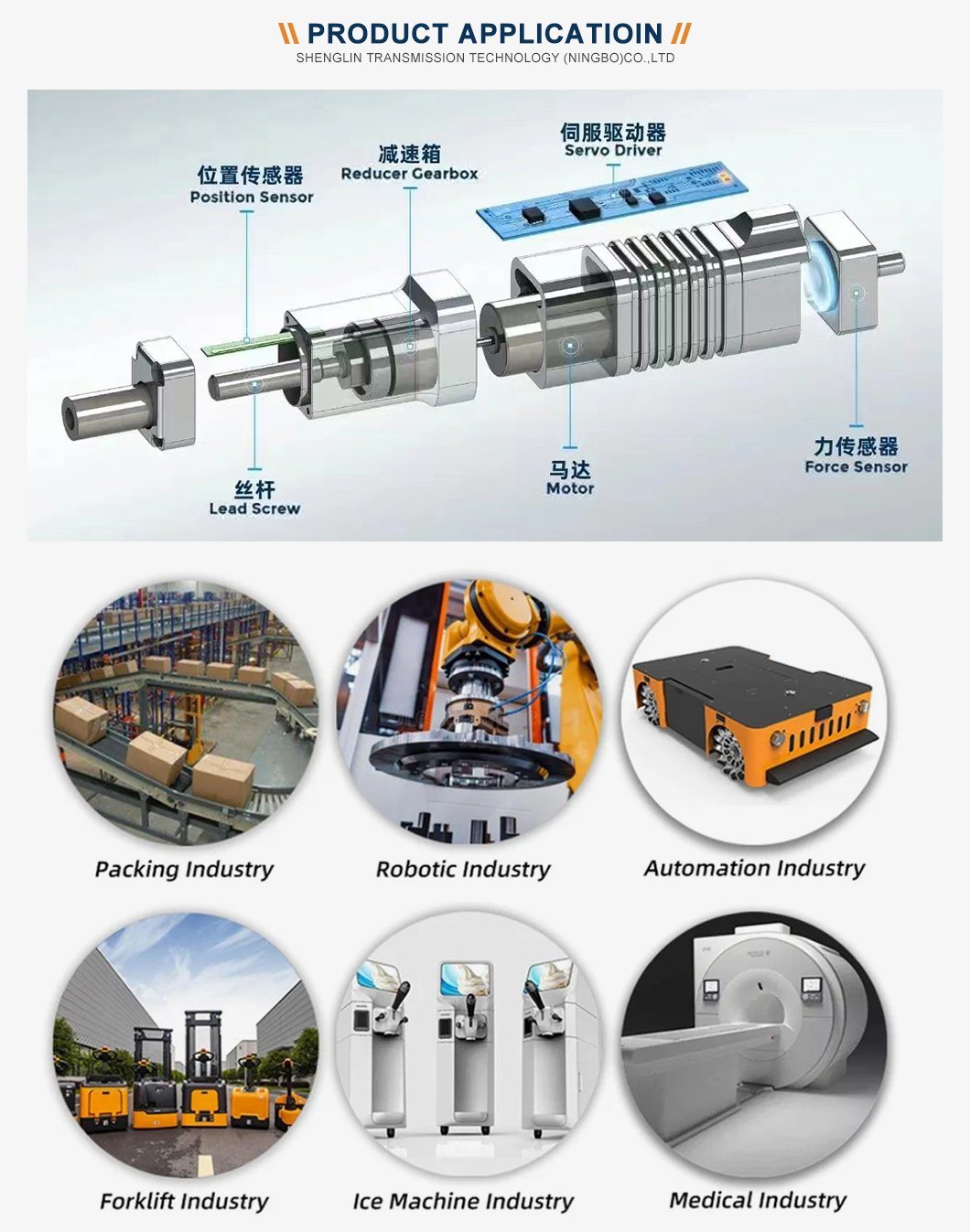

Primary Deployment Sectors

• Logistics & Warehousing Automation: Delivers the necessary torque and reliability for automated guided vehicles (AGVs), automated storage and retrieval systems (AS/RS), and sorting conveyors. The compact form factor allows AGV designers to lower the vehicle's center of gravity, ensuring continuous, stable operation in high-throughput distribution centers.
• Medical Equipment Manufacturing: The zero-backlash precision guarantees the exact positioning required for surgical robotics, patient handling tables, and advanced diagnostic imaging machinery like MRI or CT scanners, where even microscopic deviations are unacceptable.
• Packaging Machinery: Facilitates rapid, synchronized movements in multi-axis packaging lines. The high torque capacity handles the start-stop dynamics of filling, sealing, and labeling processes, reducing material waste and significantly improving cycle times.
• Aerospace & Defense: Engineered to withstand harsh environments while maintaining the strict weight and space constraints demanded by aerospace applications, radar positioning systems, and specialized defense equipment.

Sensory & Operational Excellence

Upon inspection, the precision-machined surface of the gearbox reflects a commitment to engineering excellence. The tactile feel of the solid metallic housing conveys immediate structural integrity and thermal dissipation capabilities. During operation, the unit produces a remarkably low acoustic profile, a testament to the optimized gear meshing and premium synthetic lubrication sealed within. This absence of excessive vibration and noise not only extends the lifespan of the reducer itself but also protects sensitive adjacent electronic components within the broader mechanical assembly. The sealed design also prevents lubricant leakage, ensuring a clean operating environment which is particularly crucial for food processing and pharmaceutical manufacturing applications.
