R Series Heavy-duty Helical Bevel Gear Motor Gearbox Speed Reduction
R series inline helical geared motors with compact structure and high torque. R series helical geared motor / helical gearbox (gear reducer) is developed and produced according to our country's standards as well as bring into overseas' advanced design. It has good structure, better currency, high reliability, low temperature rise and noise, big carrying capacity, good combination capability. It can be combined with R Kafando MB series gearbox and gain lower output speed and bigger torque.
The R Series Heavy-duty Helical Bevel Gear Motor Gearbox Speed Reduction system is engineered to deliver reliable torque and consistent power transmission for demanding industrial applications. Designed with precision and built for longevity, this gear motor solution addresses the critical needs of modern automated facilities. By integrating advanced gear technology with high-strength housing materials, it provides procurement managers and engineering teams with a dependable drive mechanism that minimizes operational risks, optimizes energy consumption, and ensures continuous production stability across various heavy-duty sectors.
Design and Construction: R series gear reducers are compact units that effectively combine an electric motor with a highly durable gearbox. This integrated design significantly reduces the installation footprint, making it an ideal choice for facilities where spatial efficiency is critical but high torque output is required. The durable external housing protects internal components from harsh environmental factors, ensuring long-term structural integrity and providing a streamlined power transmission solution that simplifies initial setup and alignment.
Helical Gears for Smooth Operation: The internal transmission relies on premium helical gears, which feature teeth cut at a precise angle to the gear axis. This specialized geometry allows for gradual and continuous tooth engagement, drastically minimizing mechanical shock and vibration during operation. Compared to standard gear types, this design ensures exceptionally smooth and quiet performance, creating a better working environment while simultaneously reducing wear and tear on the gear teeth to maintain highly stable torque delivery under fluctuating loads.
Versatile Industrial Applications: Engineered for adaptability, R series gear reducers find extensive applications across major heavy-duty industries, including manufacturing, material handling, and mining operations. They are highly suitable for driving critical infrastructure such as heavy-duty conveyor belts, industrial mixers, large-scale pumps, and crushers. Their ability to maintain precise speed control and unwavering torque transmission makes them an essential component for continuous production lines, helping operators reduce the risk of unexpected system failures in demanding environments.
High Transmission Efficiency: One of the most significant advantages of the helical gears used in the R series is their strong energy transfer capability, typically achieving an efficiency range of 90% to 95%. This high efficiency strictly limits energy loss during mechanical transmission, meaning less power is wasted as heat. For large-scale industrial setups running continuous operations, this translates directly to significantly lower electricity costs, cooler running temperatures, extended lubricant life, and improved overall system performance.
Flexible Customization Options: To accommodate diverse project requirements, these gear reducers support extensive customization capabilities. Customers can select specific gear ratios, customized output shaft configurations, and various mounting options (such as foot or flange designs) to accurately match their existing machinery infrastructure. This high degree of adaptability simplifies the integration process for engineering teams, ensuring that the drive solution aligns precisely with unique application demands without requiring costly or time-consuming system modifications.
Durability and Reliability: Designed specifically for demanding industrial environments, R series gear reducers are built to withstand heavy-duty use over extended periods. Utilizing premium-grade materials and advanced heat treatment processes, the internal components are engineered to resist fatigue and heavy impact loads. This durability drastically extends the mean time between failures (MTBF), providing a long service life with minimal routine maintenance. Consequently, facilities can reduce operational downtime, optimize labor resources, and achieve a highly favorable return on investment.
Investing in the R Series Helical Gear Motor means choosing a power transmission solution that balances heavy-duty performance with operational cost-efficiency. Whether upgrading existing material handling systems or outfitting a new manufacturing facility, this gearbox delivers the consistent, quiet, and highly efficient torque required to keep industrial operations running smoothly and profitably.

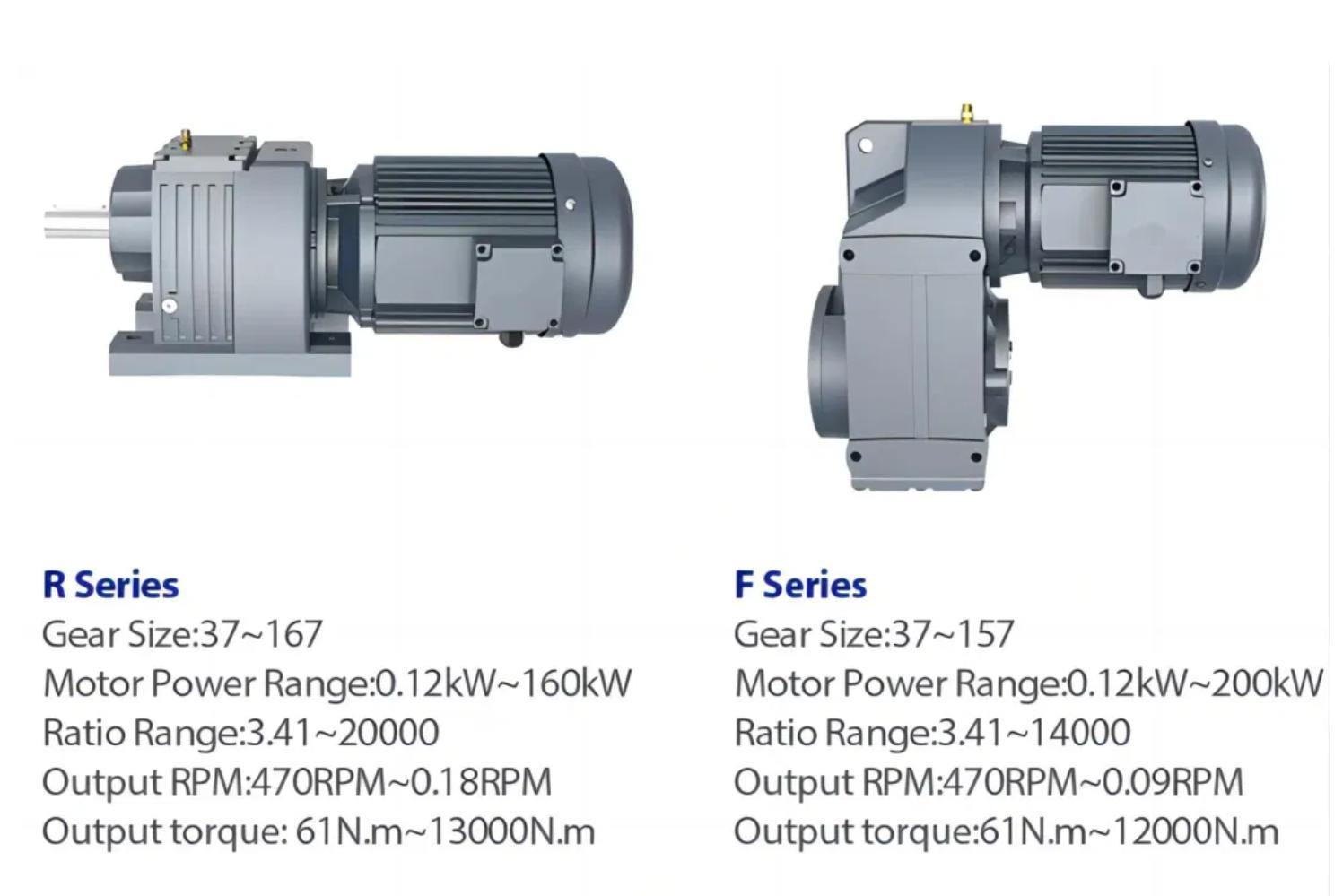

Technical parameters
The R Series heavy-duty helical bevel gear motor is available in various mounting configurations and sizes to meet specific industrial requirements. Below are the detailed technical parameters and available models to assist in precise equipment selection:
Available Options: With brake, with encoder are available to support different operational needs and project requirements.
FAQ
Frequently Asked Questions
Q1: What is the transmission efficiency of the R Series Helical Bevel Gear Motor? A: These heavy-duty gearboxes are engineered for high transmission efficiency, typically reaching up to 95% or more depending on the specific gear ratio and operating conditions. This design helps optimize energy consumption for large-scale industrial equipment.
Q2: Do you provide customization options for specific project requirements? A: Yes, we offer tailored solutions to meet your specific purchasing and installation needs. Customization options may include varying mounting positions, output shaft dimensions, motor flanges, and specialized surface coatings designed for harsh operating environments.
Q3: Which industries are suitable for using this heavy-duty speed reduction gearbox? A: This speed reduction gearbox is designed for demanding sectors such as mining, metallurgy, cement production, chemical processing, material handling, and conveyor systems. It is highly suitable for applications where reliable torque transmission and continuous heavy-duty operation are essential.
Q4: How does the structural design benefit long-term use and maintenance? A: The helical bevel gear design ensures smooth operation with reduced vibration and noise. Combined with a robust housing, it provides excellent load-bearing capacity and stability, significantly lowering the risk of unexpected downtime and reducing overall maintenance efforts for equipment operators.
R(foot mounted):R37,R47,R57,R67,R77,R87,R97,R107,R137,R147,R167 RF(flange mounted):RF37,RF47,RF57,RF67,RF77,RF87,RF97,RF107,RF137,RF147,RF167 RX(foot mounted):RX37,RX47,RX57,RX67,RX77,RX87,RX97,RX107 RXF(flangemounted):RXF37,RXF47,RXF57,RXF67,RXF77,RXF87,RXF97,RXF107 Can match: ac motor from power 0.12kw to 160kw,WITH BRAKE, WITH ENCODER ARE AVAILABLE
