RXF Model Helical Gearbox with AC Electric Motorr Heavy Duty

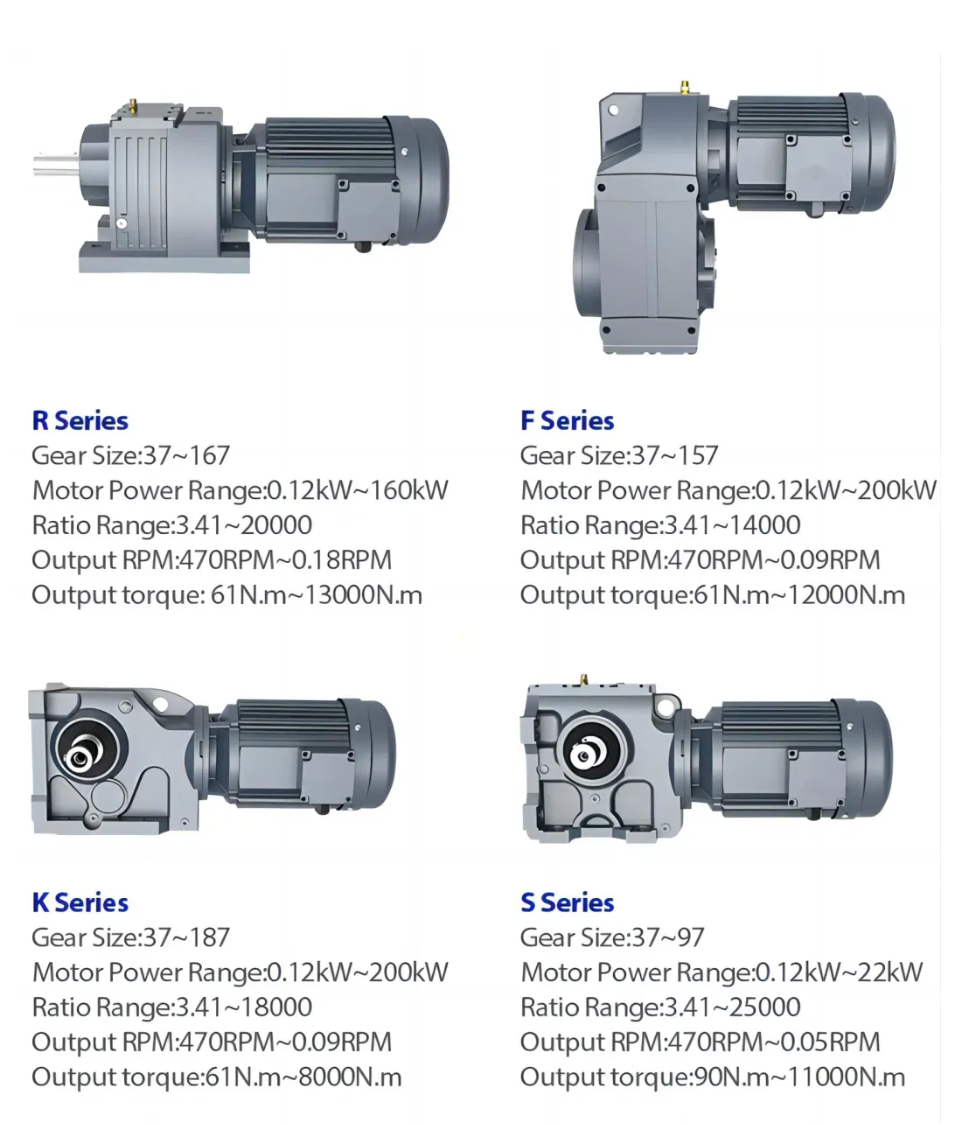

The R-type gear reducer has excellent performance, especially known for its high mechanical efficiency and transmission durability. The single-stage RX series and the second and third stage R series can withstand high radial loads.
The RXF Model Helical Gearbox with AC Electric Motor Heavy Duty is engineered to transform raw electrical energy into controlled, relentless mechanical force for demanding industrial environments. Made in accordance with relevant technical requirements, it has high technological content that meets the strict demands of modern production facilities. When operators stand next to the running machinery, they will immediately notice that the product has low noise, high energy efficiency, and low vibration, a testament to its internal balance and precise engineering. The exterior finish of the gearbox offers a smooth, industrial-grade tactile feel, coated meticulously to resist environmental wear and tear. Furthermore, the overall architecture is intentionally space saving, reliable and durable, with high overload capacity and a power output of up to 160KW. This ensures that facility managers can maximize their operational footprint without sacrificing the heavy-duty driving force required for continuous, uninterrupted production lines.
Engineering & Material Excellence
At the core of this transmission unit is an uncompromising commitment to structural integrity and operational longevity. During manufacturing, high quality forged steel materials are selected, and the steel cast iron box body and gear materials are all made of 20CRMNTI carburizing quenching and gear grinding, with a machining accuracy of over level 5. This specialized 20CRMNTI material undergoes rigorous thermal processing, resulting in a hardened outer shell that fiercely resists friction, while maintaining a tough inner core capable of absorbing sudden mechanical shocks. Due to this robust architecture, the R series can withstand high radial loads without compromising rotational stability. Facility managers will highly appreciate the low energy consumption, superior performance, and gearbox efficiency of over 95%, which keeps operational costs strictly managed while maximizing output. After precision machining to ensure shaft parallelism and positioning bearing requirements, the reducer of the helical gear transmission assembly is equipped with various types of motors, combined into electromechanical integration, fully ensuring the quality characteristics of product use.
Structural Mounting & Input/Output Configurations
Flexibility in physical installation is critical for integrating heavy machinery into existing production lines. The RXF Model Helical Gearbox supports a comprehensive array of mounting options to accommodate diverse spatial constraints. It readily supports horizontal foot mounting for standard floor-level setups, vertical flange mounting (B5) for vertical drive requirements, and adapts seamlessly to M1-M6 multi-directional spatial installation orientations. This allows the heavy-duty unit to fit effortlessly into highly compact or uniquely shaped mechanical spaces. To facilitate frictionless mechanical connections, the gearbox provides versatile input and output configurations.
Solid Shaft: Ideal for standard, direct-drive applications requiring straightforward alignment.
Solid Shaft with Key: Ensures secure, locked torque transmission preventing slippage under heavy loads.
Hollow Shaft: A highly space-efficient option that allows the driven machine's shaft to be inserted directly into the gearbox.
These varied interface options meet the seamless transmission connection needs of different OEM equipment, significantly reducing engineering overhead and installation time.
Motor Compatibility & Performance Scalability
Driving this heavy-duty gearbox requires versatile and reliable power input options. The system is equipped with standard IEC motor adapters, guaranteeing perfect compatibility with a vast spectrum of power sources. Industrial operators can seamlessly pair the gearbox with standard three-phase AC motors, explosion-proof motors for hazardous chemical environments, brake motors for precise stopping mechanisms, variable frequency drives for dynamic speed control, metallurgical hoisting motors, and specialized DC motors. Beyond initial compatibility, the RXF Model excels in long-term performance scalability. It provides an exceptionally wide range of reduction ratios and high torque output capabilities. For applications requiring extreme precision and immense pulling force, the unit supports tandem combinations with other reducers. This modular approach easily achieves ultra-low speed, heavy-duty transmission without compromising on the mechanical stability of the drive system.
Industrial Applications & Customization Solutions
The sheer durability and adaptable nature of the RXF Model make it an indispensable asset across heavy and complex industrial environments. It is widely applied in demanding sectors such as underground tunnel engineering, where the machinery must handle immense, unpredictable resistance from solid rock formations. In the shipbuilding heavy industry, it smoothly drives massive gantry cranes and assembly line conveyors, shrugging off the salty, corrosive ambient air. Furthermore, it performs exceptionally well in chemical and pharmaceutical processing plants, heavy-duty mixing equipment, and large-scale logistics conveying systems. Recognizing that standard configurations may not meet every highly specialized requirement, comprehensive customization solutions are readily available. Our engineering team provides exclusive, non-standard customization services tailored specifically for industrial and OEM clients. This ensures that the gearbox and the working machinery achieve highly efficient electromechanical integration, perfectly aligned with the specific operational demands and environmental challenges of your facility.
