How To Calculate Torque Motor

Calculating motor torque goes far beyond a simple physics exercise. It represents a critical commercial decision shaping your machine's entire operational life. Guesswork during motor selection introduces severe operational risks. You simply cannot afford these blind assumptions. Undersizing a motor leads directly to thermal failure. The equipment stalls frequently under load. You suffer unexpected production downtime and ruined manufacturing schedules. Conversely, oversizing creates equally destructive problems across your facility. It inflates initial capital expenses drastically. Larger motors waste massive amounts of electricity. They also generate excessive startup shock forces. These violent forces damage gearboxes and snap drive belts. You need an evidence-based approach to avoid these costly engineering pitfalls. This guide provides a step-by-step framework to calculate motor torque accurately. We help you account for complex physical loads. You will learn to navigate system inefficiencies effectively. Ultimately, you will gain the knowledge to select the right industrial motor. Master these principles to ensure reliable operation while optimizing overall energy consumption.

Key Takeaways

• Motor torque calculation requires distinguishing between steady-state load torque and dynamic acceleration torque.
• Base calculations use standard constants: 9550 for Metric (kW to Nm) and 5252 for Imperial (HP to lb-ft), using *rated speed*, not synchronous speed.
• Accurate sizing must factor in mechanical inefficiencies (e.g., gearbox losses of 5-15%) and appropriate service factors based on application shock loads.
• A "Torque Motor" designed for high-torque, low-speed applications eliminates the need for complex gearboxes, improving overall system reliability.

The Commercial and Operational Impact of Torque Sizing

Motor selection always balances performance reliability against energy efficiency. You must strike the perfect middle ground for long-term machine success. Engineers face constant pressure to deliver robust power. However, they must also keep electrical consumption low. This delicate balance begins with accurate torque calculations.

When you undersize, rapid equipment degradation inevitably follows. The motor struggles to initiate movement. Locked-rotor conditions subject the internal stator windings to immense thermal stress. The protective insulation degrades incredibly fast under these peak temperatures. This degradation leads directly to unexpected downtime. You will face expensive, premature motor replacements. Your maintenance budgets will inflate rapidly. Your assembly lines will stop functioning.

Avoid the common "bigger is better" fallacy at all costs. Larger motors operate at significantly lower efficiency points when driving light loads. They increase your initial capital expenditure needlessly. Furthermore, they draw massive inrush currents during startup. They also generate excess starting torque. This sudden, violent rotational force can shear mechanical couplings instantly. It frequently destroys drive components and tears transmission belts. Overpowered machines physically tear themselves apart over time.

Motor architecture heavily influences overall energy utilization. Specialized physical designs maximize the electromagnetic air gap interaction area. Outer-rotor designs provide excellent mechanical leverage. A direct-drive Torque Motor delivers an exceptional torque-to-energy ratio. These specialized designs eliminate mechanical transmission losses. They directly drive the required load. You achieve much better system response times. You also guarantee superior machine reliability by removing the fragile gearbox component.

Common Engineering Mistakes in Torque Calculation

Engineers frequently miscalculate torque due to fundamental physics misunderstandings. We see three specific errors repeatedly in industrial machine design. You must avoid these traps to ensure accurate motor specification.

Mistake 1: Confusing Static Weight with Dynamic Force. Many professionals mistakenly treat static mass as the exact force required to turn a load. Think about accelerating a heavy commercial truck. You must overcome inertia, rolling friction, and gravity. You do not simply lift its total weight straight up into the air. The same logic applies directly to rotational mechanics. Weight is just one single variable among many. You need precise acceleration targets to calculate actual force.

Mistake 2: Using the Wrong Speed Variable. Calculation formulas strictly require the nameplate rated speed. Do not use the theoretical synchronous speed. AC induction motors always experience "slip" under physical load. The rated speed accounts for this undeniable physical reality. Consider a four-pole motor running on 60Hz power. Its synchronous speed equals 1800 RPM. However, its rated speed might only hit 1750 RPM under load. If you use the synchronous speed, your final torque estimate will be incorrectly low.

Mistake 3: Ignoring Mechanical System Inefficiencies. No motor delivers 100% of its torque to the final load point. Power transmission components constantly consume mechanical energy. Friction steals power at every connection point.

Consider these typical mechanical transmission losses:

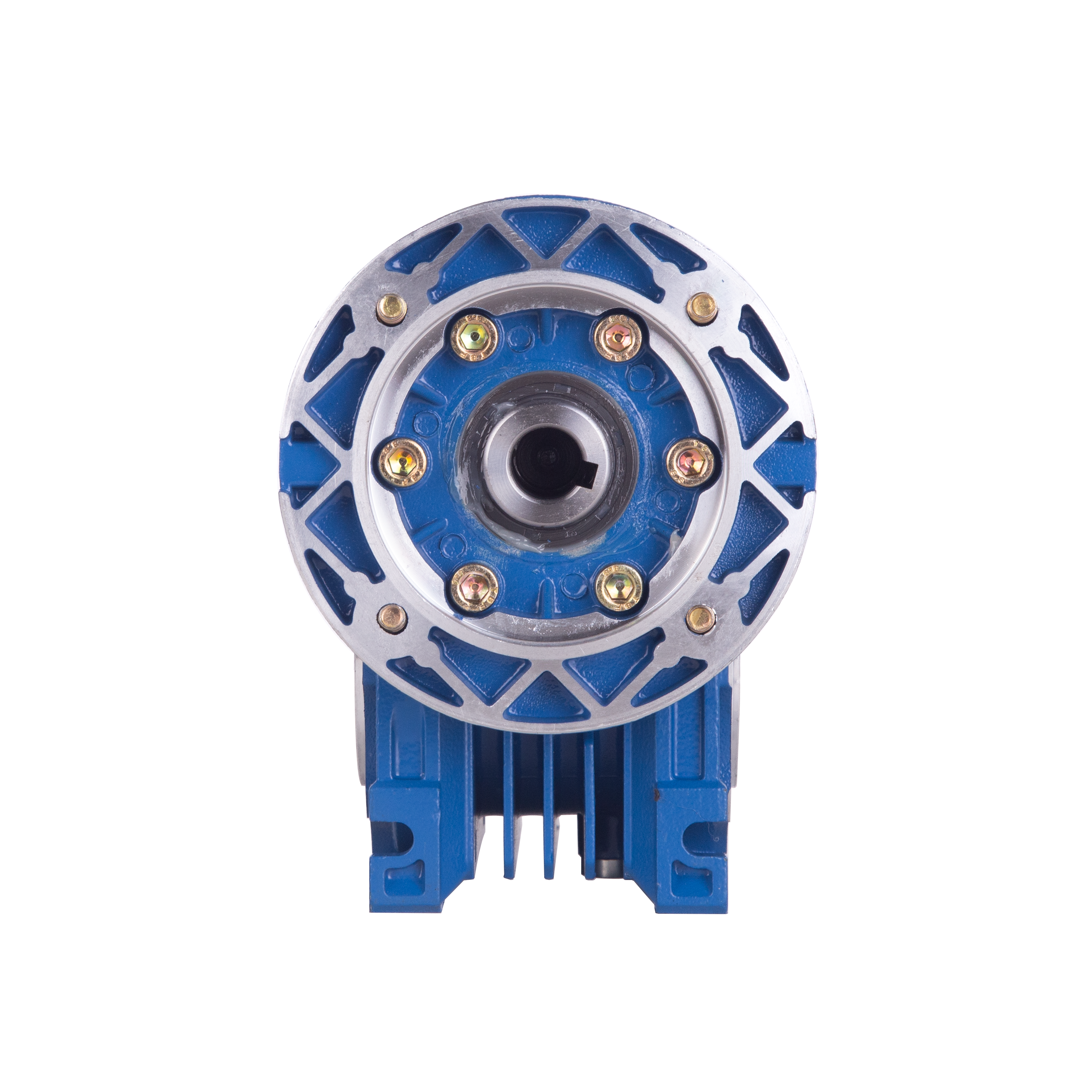

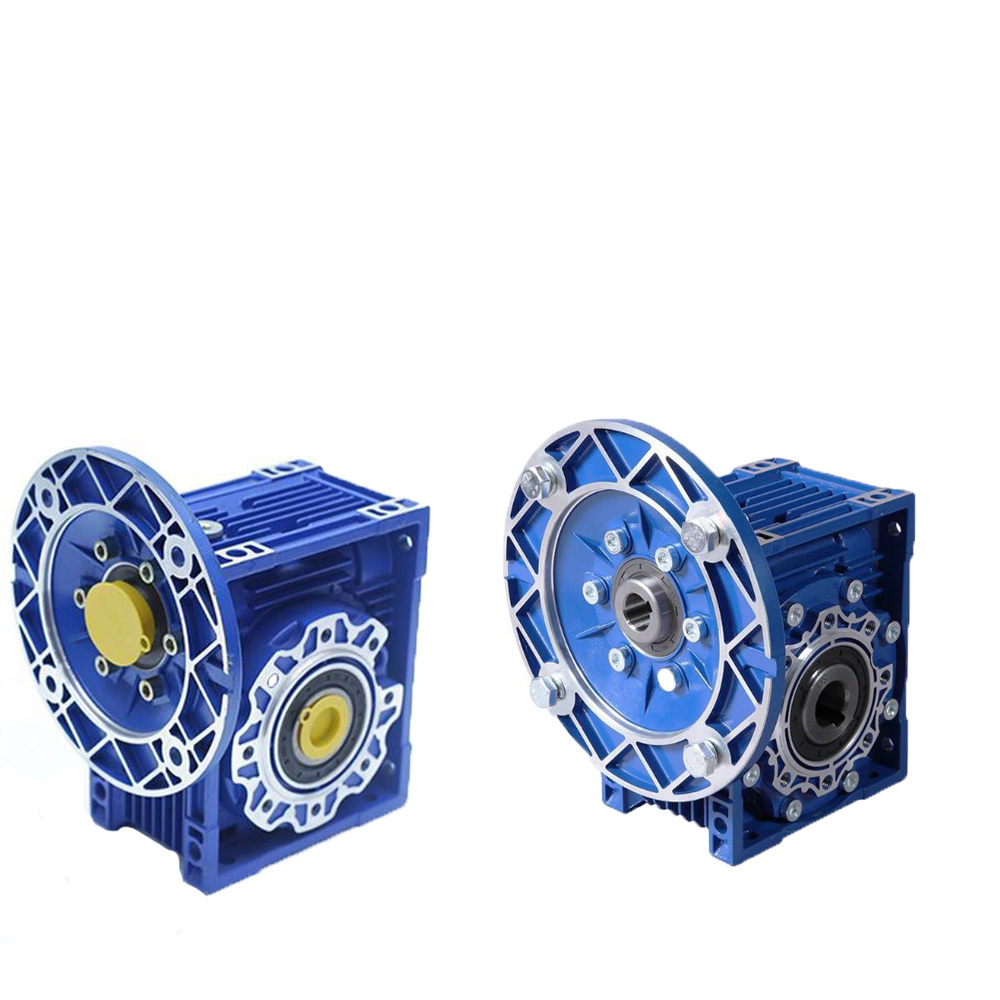

• Standard worm gearboxes: 10% to 30% power loss.
• Helical gearboxes: 2% to 5% power loss.
• V-belt drives: 3% to 6% power loss.

You must divide your required load torque by the total transmission efficiency. A 90% efficient gearbox requires you to divide your target torque by 0.9. This increases the motor output requirement appropriately.

Core Formulas: How to Calculate Motor Torque

You need reliable mathematical foundations to specify motors correctly. These baseline physics formulas provide your starting point for accurate sizing. Memorize them carefully.

The Metric Standard (Nm)

Use this primary formula for SI unit calculations: T (Nm) = (Power in kW × 9550) / Speed in RPM.

The number 9550 serves as the standard metric conversion constant. It neatly simplifies the complex relationship between kilowatts and Newton-meters. You just plug in the motor's power rating and its loaded running speed.

The Imperial Standard (lb-ft)

Use this formula for North American engineering standards: T (lb-ft) = (Power in HP × 5252) / Speed in RPM.

The constant 5252 handles the mathematical conversion between horsepower, feet, and pounds. Like the metric version, it requires the rated loaded speed, never the free-spinning speed.

DC vs. AC Motor Nuances

DC Motors offer very straightforward estimation paths. You simply multiply the measured current by the motor's unique torque constant (Kt). The calculation reads: T = Current (A) × Kt. The manufacturer provides this Kt value on the specification sheet.

AC Motors behave much differently. We strongly warn against estimating AC torque using only a standard clamp-on ammeter. Fluctuating power factors skew AC current readings drastically. The relationship between current and torque changes dynamically. Always rely on the mechanical output formulas instead. Current measurement alone provides dangerous false confidence when sizing AC systems.

A 4-Step Framework for Complex Load Torque

Industrial machinery requires comprehensive, multi-layered calculations. You must uncover the total required torque for the entire system. This final number equals the sum of Load Torque and Acceleration Torque, multiplied by a strict Safety Factor. Follow this logical sequence.

1. Step 1: Calculate Moment of Inertia (J). Break your complex mechanical load into simple geometric shapes. Analyze solid cylinders, hollow tubes, and linear components as separate entities. Use standard physics reference tables to find their specific formulas. Sum their individual rotational inertia values. This gives you the total system inertia.
2. Step 2: Determine Steady-State Load Torque. Calculate the baseline rotational force. This force overcomes continuous mechanical friction and gravity while running at a constant speed. It completely ignores acceleration. Think of this as the cruising effort needed to keep the machine moving smoothly.
3. Step 3: Calculate Acceleration Torque. The acceleration phase usually represents the absolute highest demand placed on the motor. Use the standard formula T = I × α. This means Inertia multiplied by Angular Acceleration. You must define a precise target acceleration time. Shorter acceleration times demand massively higher peak torque outputs. Fast ramps require huge power.
4. Step 4: Apply Service Factors. Add intelligent engineering safety nets to your final design. We recommend using a 1.0 to 1.1 multiplier for smooth, continuous loads like centrifugal fans. You should use 1.5 or much higher for high-impact applications. Heavy rock crushers and frequent start-stop machinery demand these robust safety buffers to survive industrial environments.

Real-World Scenarios: Conveyors, Pumps, and Robotics

Let's apply these theoretical principles to specific industrial environments. Each unique application presents distinct physical challenges for proper motor selection.

Linear to Rotary (Conveyor Belts)

Conveyors represent classic constant torque applications. You must convert linear mass movement into rotational requirements. Factor in the friction coefficients of the belt dragging against the steel bed. Include the drive pulley diameters in your math. Account for inherent gearbox drag. The motor must pull the entire belt's heavy weight plus the product's maximum payload. This demand remains steady once up to full speed.

Variable Torque (Centrifugal Pumps)

Pump systems behave differently. The required torque increases exponentially as the impeller speed rises. You cannot simply size a pump motor based on an average daily flow. Sizing must account strictly for the absolute peak flow rate. At maximum RPM, the fluid resistance demands massive rotational force. Sizing based on average flow guarantees the motor will stall during high-demand surges.

High-Dynamic Torque (Robotic Arms)

Industrial robotics demand incredibly complex kinematics math. The servo motor overcomes both payload weight and the arm's static holding moment. You must perform precise Effective Load Torque calculations, also known as RMS Torque. This prevents winding thermal overload during rapid, repetitive movement cycles. A robot starting and stopping fifty times a minute generates intense internal heat.

Review this quick reference chart for common industrial application profiles:

Evaluating and Shortlisting the Right Torque Motor

You have several viable paths for final hardware selection. Engineers typically compare traditional high-speed motors paired with reduction gearboxes against modern direct-drive alternatives. A specialized Torque Motor delivers massive rotational force at extremely low speeds natively. This inherent design advantage often eliminates external gearboxes entirely. It simplifies your machine build significantly and reduces maintenance points.

Evaluation Criteria

Check your application's duty cycle carefully before ordering. Does the machine start and stop more than ten times per single hour? If yes, you must prioritize RMS torque calculations over nominal running torque. High-frequency cycles generate immense internal heat. Standard induction motors will burn out quickly under these aggressive cyclic conditions.

Always verify your theoretical math. We strongly recommend validating physical prototypes using laboratory dynamometers. You can also install inline strain-gauge torque sensors during initial machine testing runs. Real-world testing data always supersedes theoretical formulas on paper. Actual friction values rarely match the textbook estimates perfectly.

Next-Step Action

Consolidate your exact application parameters today. Gather your inertia values, acceleration times, and precise duty cycle data. Consult a dedicated motor application engineer directly. You can also use proprietary sizing software programs to finalize your precise technical specification confidently.

Conclusion

Accurate torque calculations dictate your entire mechanical system's longevity and ultimate profitability. Guesswork simply has no place in modern machine design. Theoretical calculations provide your essential engineering baseline. They map out the raw power required. However, the true operational environment dictates the final motor selection. Ambient temperature variations, complex duty cycles, and mechanical inefficiencies play critical roles.

Review your sizing equations carefully. Consolidate your mechanical parameters into a clear requirements document today. Reach out to an engineering support team for expert guidance on your specific application. Alternatively, download a comprehensive motor selection calculator to refine your sizing process further. Proper calculation upfront prevents catastrophic failures tomorrow.

FAQ

Q: What is the difference between starting torque and breakdown torque?

A: Starting torque represents the locked-rotor force required to overcome initial static friction and begin turning a stationary load. Breakdown torque defines the absolute maximum rotational force an AC motor can produce. If external load demands exceed this peak breakdown value, the motor will stall completely and potentially overheat.

Q: How does a motor's pole count affect torque?

A: They share an inverse mathematical relationship. Adding more internal magnetic poles lowers the motor's baseline operating RPM. However, it significantly increases the total available torque output. For example, a six-pole motor spins much slower but pushes much harder than a standard two-pole motor of the exact same horsepower.

Q: Why does my AC motor never reach its synchronous speed?

A: AC induction motors rely entirely on a physical phenomenon called "slip." Slip measures the difference between the rotating magnetic field's speed and the rotor's actual physical speed. The physical rotor must spin slightly slower. This necessary relative motion induces the electrical current required to generate rotational torque.

Q: Can I calculate torque just by measuring motor weight or load weight?

A: No, you absolutely cannot. Proper force and torque calculations require factoring in dynamic acceleration, system inertia, and mechanical friction. Static mass only tells you how heavy an object rests. It never measures the actual rotational force needed to overcome gravity and dynamic resistance during movement.
