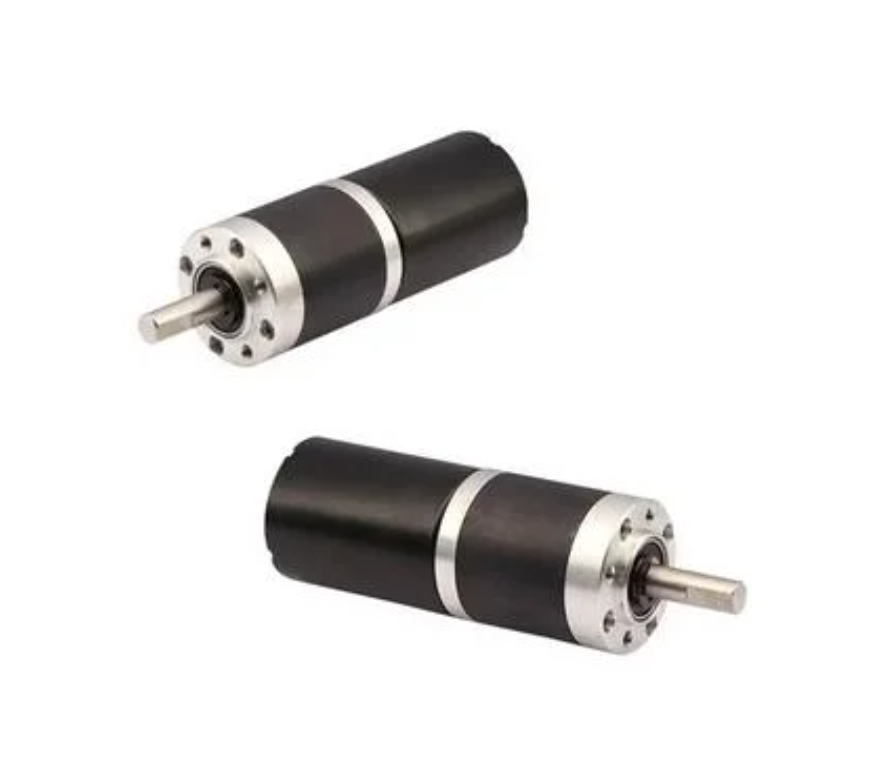

Traditional motor-and-gearbox assemblies often create severe engineering bottlenecks. They introduce mechanical compliance, physical backlash, and demanding maintenance cycles. These physical limitations heavily restrict precision and dynamic response in high-performance machines.
Engineers increasingly turn to the Torque Motor to solve these frustrating challenges. As the industry standard for direct-drive applications, it delivers massive rotational force at low or zero speeds. By completely eliminating mechanical drivetrains, you gain unmatched operational accuracy and system stiffness.
This article provides a deep dive into direct-drive mechanics for engineers and technical buyers. We explore how these specialized systems outperform conventional servos in real-world scenarios. You will also learn the critical evaluation metrics required for accurate system sizing and deployment.
Key Takeaways
- Direct-Drive Architecture: Torque motors eliminate gearboxes and belts, physically connecting the payload to the rotor to eradicate backlash and reduce settling time.
- Continuous Stall Capability: Unlike standard induction motors, they can operate indefinitely at zero speed (stall) without exceeding thermal limits, making them ideal for tension control.
- Sizing Paradigm: Selection is based purely on torque requirements (peak and continuous) rather than power ratings, prioritizing the Motor Constant ($K_m$) for thermal efficiency.
1. What Is a Torque Motor? The Engineering Baseline
You can define this technology as a highly specialized class of brushless permanent-magnet synchronous motors (PMSM). Manufacturers engineer them specifically to deliver exceptional rotational force at low-to-medium speeds. Unlike standard industrial motors, they do not rely on rapid revolutions per minute (RPM) to generate mechanical power. Instead, they maximize electromagnetic leverage to hold and move heavy payloads directly.
Most commercial units arrive as "frameless" components. A frameless Torque Motor consists solely of a bare rotor and stator. It lacks outer housings, integrated bearings, or proprietary drive shafts. Machine builders integrate these raw electromagnetic components directly into the host machine’s mechanics. This embedded approach saves considerable space and significantly increases structural rigidity.
To specify the right unit, you must evaluate four distinct operational profiles. Each profile dictates how the system handles different mechanical stresses:
- Starting Torque: The initial rotational force required to overcome static friction and load inertia. This spike in demand happens the moment motion begins.
- Running Torque: The continuous force needed to maintain constant velocity under an active load. It represents the steady-state thermal baseline of the system.
- Peak Torque: The maximum short-term output available before the system risks magnetic saturation or thermal damage. Engineers rely on this for rapid acceleration phases or emergency braking.
- Stall Torque: The sustained force maintained at exactly zero RPM. A standard induction motor would burn out quickly here. However, a properly integrated direct-drive system handles continuous stalling safely.
2. Mechanics and Configurations: How Torque Motors Work
The underlying electromagnetic principles closely mirror conventional servo technology, but they operate on a much denser scale. Functionally, you can imagine the design as a "rolled-up linear motor." Manufacturers pack an exceptionally high number of pole pairs into the stator. When alternating current flows through the windings, it generates a highly synchronous, slow-rotating magnetic field. The dense pole count translates directly into immense mechanical leverage.
Magnetic Flux Pathways
The direction of the magnetic field determines the physical shape and ideal use case for the unit. Engineers generally choose between two primary flux pathways:
- Radial Flux: The magnetic fields travel perpendicular to the axis of rotation. These units resemble traditional motors but feature larger diameters. They remain easier to mount, structurally simpler, and highly cost-effective for standard industrial automation.
- Axial Flux: The magnetic fields travel parallel to the rotational axis. The design resembles two flat pancakes pressing together. This configuration offers ultra-compact axial lengths and exceptional power density. Space-constrained robotics and aerospace gimbals rely heavily on axial designs.
Rotor Positioning
The placement of the spinning permanent magnets relative to the static coils drastically alters mechanical behavior. You must align the rotor configuration to your specific application requirements:
- Inrunner Configuration: The rotor spins securely inside the stator. This layout reduces rotational inertia, providing much faster acceleration and precise high-speed control. It also allows better heat dissipation outward into the machine chassis.
- Outrunner Configuration: The rotor spins on the outside of the static coils. This design maximizes the magnetic lever arm. It delivers superior holding force and raw strength where continuous pushing power matters more than rapid velocity changes.
3. Performance Outcomes: Torque Motors vs. Conventional Servo Motors
Shifting from complex drivetrains to direct-load connections redefines machine performance. A traditional setup requires a high-speed servo, a coupling device, and a reduction gearbox. Every added component introduces mechanical flaws. Direct-drive technology eliminates this entire chain.
Many frameless designs also feature a large hollow aperture or inner bore. This structural void simplifies internal routing. Engineers can easily pass power cables, pneumatic hoses, fiber-optic lasers, or cooling tubes directly through the rotational center. You cannot achieve this elegant routing using a solid-shaft servo motor.
Elimination of Mechanical Deficits
Gears and belts inherently flex and wear down. When you physically bolt the payload to the rotor, you eradicate these mechanical deficits entirely:
- Zero Backlash and Lost Motion: Gears require tiny gaps between teeth to spin. This gap causes backlash. When changing directions, a traditional motor turns slightly before the payload actually moves. Direct connection removes this mechanical play entirely.
- Reduced Settling Time: Mechanical flexibility causes microscopic bouncing at the end of a movement. This compliance forces the controller to wait before executing the next command. Eliminating drivetrains allows you to maximize the control loop bandwidth. The machine achieves its target position in fractions of a second and stops perfectly rigid.
Maintenance and Longevity
Replacing standard drivetrains significantly extends the machine lifecycle. Belts stretch, gear teeth grind down, and couplings eventually snap under fatigue. By removing these specific wear parts, direct-drive technology offers near-zero mechanical maintenance. The only friction points remaining are the primary machine bearings. This streamlined architecture also drastically lowers acoustic noise, creating a much safer, quieter factory environment.
4. Evaluation Criteria: How to Spec and Size a Torque Motor
Engineers must completely abandon standard horsepower or kilowatt ratings when evaluating direct-drive systems. These conventional power metrics measure high-speed mechanical work. Instead, direct-drive sizing logic dictates a strict focus on static friction, dynamic inertial loads, and continuous holding requirements.
The Importance of the Motor Constant ($K_m$)
The Motor Constant ($K_m$) serves as the ultimate benchmark for system efficiency. It defines the ratio of rotational output to resistive power loss (measured in $Nm/\sqrt{W}$). A higher $K_m$ value indicates a much more thermally efficient device. When sizing a Torque Motor, you want it to exert maximum physical force while generating the least amount of waste heat.
Direct-Drive Sizing Evaluation Chart | Evaluation Metric | Primary Function | Optimization Goal |
| Motor Constant ($K_m$) | Measures thermal efficiency and force generation. | Maximize to reduce heat buildup during continuous stall. |
| Cogging Torque | Measures magnetic "bumping" at low speeds. | Minimize for ultra-smooth optical or scanning applications. |
| Peak Current ($I_{peak}$) | Defines the electrical ceiling for rapid acceleration. | Align with servo drive limits to prevent electronic faults. |
| Thermal Resistance | Dictates how quickly heat transfers to the machine frame. | Minimize to allow higher continuous running loads. |
Mitigating Detent (Cogging) Effects
Standard permanent magnet systems suffer from cogging. As the rotor spins, magnets naturally pull toward the iron teeth of the stator, causing a subtle jerking motion. For ultra-precision applications like semiconductor inspection, you must evaluate low-cogging designs. Manufacturers mitigate this by utilizing ironless cores or implementing fractional pole pitches. These engineered adjustments ensure perfectly smooth motion even at speeds approaching zero.
Thermal Management Realities
Because frameless designs lack external cooling fins, they dissipate heat directly into the machine frame. You must carefully calculate thermal boundaries. Natural convection cooling works well for intermittent movements or light holding tasks. However, sustained high-load operations often require internal liquid cooling circuits. Milling machines routinely channel coolant through the surrounding stator jacket to stabilize temperatures and prevent thermal expansion from ruining machining tolerances.
5. Industrial Applications and Implementation Risks
Direct-drive architectures excel in environments where traditional gearing simply fails. You will find them deployed across heavily demanding industrial sectors.
High-Friction and Tension Control
Roll-to-roll manufacturing heavily relies on continuous holding force. Winding and unwinding applications for thin films, carbon fibers, and copper wire demand absolute tension consistency. The mechanism must constantly adjust its speed as the material spool grows or shrinks. It frequently runs safely at a near-stall state, pulling against the material feed without overheating.
Machine Tools and CNC
Modern 5-axis milling and turning centers utilize these systems for advanced multi-tasking. A single spindle setup requires seamless transitions between different cutting modes. During heavy milling, the axis locks down, requiring massive holding force at low speeds. Moments later, it switches to turning mode, demanding smooth, low-force rotation at higher velocities. Gearless configurations handle both extremes flawlessly.
Robotics and Exoskeletons
Wearable robotics and humanoid joints demand an extreme power-to-weight ratio. Every ounce of excess machinery reduces the overall payload capacity and drains battery life. Axial-flux variants provide maximum physical force within a highly compressed physical footprint, granting robotic limbs lifelike agility and rigidity.
Implementation Risks
Despite the immense performance benefits, integration introduces heavy engineering overhead. Because you buy raw stators and rotors, your in-house team assumes responsibility for the mechanical assembly.
- Air Gap Tolerances: You must machine the host chassis to exacting standards. The gap between the spinning magnets and static coils is microscopic. Poor machining causes catastrophic collisions.
- Encoder Integration: You must separately install high-resolution optical or magnetic encoders. Perfect alignment is mandatory for accurate electronic commutation.
- Bearing Selection: Since the system lacks internal bearings, you must over-engineer the machine's primary bearings to handle intense magnetic attraction forces alongside standard operational loads.
Conclusion
Adopting direct-drive technology represents a fundamental shift in machine design. Instead of trying to manage and mitigate mechanical power transmission, you leverage direct electromagnetic force. This transition prioritizes absolute precision, unparalleled structural stiffness, and long-term hardware reliability.
To move forward, engineering teams should thoroughly audit their current drivetrain setups. Identify areas where mechanical compliance, belt stretching, or gear backlash actively harm product quality. Calculate your exact peak acceleration and continuous stall requirements accurately. Finally, request comprehensive 3D CAD models and $K_m$ thermal data from your trusted manufacturers. Proper validation of these metrics ensures a highly successful, resilient integration.
FAQ
Q: Can a torque motor run continuously at zero speed?
A: Yes. Unlike standard induction motors that overheat quickly when blocked, they feature high internal electrical impedance. Their specific thermal design allows them to safely maintain full stall force indefinitely without suffering coil damage.
Q: What is the difference between a torque motor and a direct-drive motor?
A: All of these systems practically function as direct-drive devices. However, the specific terminology emphasizes the core design intent. They maximize internal pole pairs to deliver massive physical force at low or zero speeds, rather than focusing on high-speed RPM output.
Q: Why is the torque-to-weight ratio important in motor selection?
A: In highly dynamic applications like robotics, drones, or gimbal systems, excess machinery weight directly reduces overall payload capacity. High ratios ensure maximum holding force and rapid acceleration without unnecessarily bogging down the mechanical structure.
Q: Do torque motors require specialized motor drives?
A: Yes. Due to their exceptionally high pole count and complete lack of mechanical dampening, they require high-frequency, high-bandwidth servo drives. These advanced controllers process high-resolution encoder feedback rapidly to prevent control loop instability and resonance.
