Every electronic control system faces a fundamental engineering gap. Microcontrollers (MCUs) generate low-current logic signals. However, industrial and commercial motors demand high-current, high-voltage power to operate effectively. Bridging this critical divide incorrectly leads to catastrophic failures. Without proper isolation, you risk blown MCUs, severe thermal failure, and highly inefficient motor operation. A direct connection simply cannot handle the physical demands of spinning heavy inductive loads. Moving beyond basic definitions, this guide breaks down the core architectures behind a dependable motor driver. We will explore key selection parameters, thermal management strategies, and the critical protection features required for reliable commercial deployment. Understanding these elements ensures your system runs safely. It guarantees optimal performance without compromising your delicate logic circuitry. You will learn exactly how to match the right power topologies to your specific motion control requirements.
Key Takeaways
Core Role: A motor driver acts as a current and voltage amplifier, isolating the logic circuit (MCU) from the power circuit (motor load).
Topology Dictates Application: Selection depends heavily on the motor type (Brushed DC, BLDC, Stepper) and power architecture (Integrated FETs vs. External Gate Drivers).
Reliability is Feature-Dependent: Enterprise-grade evaluation must prioritize built-in protections like Thermal Shutdown (TSD), Overcurrent Protection (OCP), and Undervoltage Lockout (UVLO).
Thermal Management: The true limiting factor in motor driver implementation is rarely the peak current rating, but rather the chip's $R_{DS(on)}$ and the PCB's heat dissipation capabilities.
The Engineering Problem: Why MCUs Cannot Drive Motors Directly
The Logic vs. Power Divide
Microcontrollers operate in a delicate, highly regulated environment. They typically output logic levels of 3.3V or 5V. Their standard current sourcing capacity hovers around 20 to 40 milliamperes (mA). Motors operate in an entirely different electrical league. Even small commercial motors require 12V, 24V, or 48V+ power rails. They draw multiple amperes of continuous current to generate torque. A standard MCU pin simply cannot supply the raw current required to energize heavy motor coils. If you attempt to power a motor directly from a logic pin, you will instantly exceed the MCU's thermal and current limits. The silicon will burn out in milliseconds.
Parameter | Typical Microcontroller (MCU) | Typical Industrial Motor |
Operating Voltage | 3.3V to 5V | 12V to 48V+ |
Current Capacity | 20mA to 40mA | 1A to 50A+ |
Load Characteristic | Resistive / Capacitive | Highly Inductive |
Signal Type | Digital Logic (High/Low) | High-Power Switching Rails |
Inductive Load Risks
Motors are inherently inductive loads. They contain coils of wire wrapped around magnetic cores. When you remove power from a spinning motor, the magnetic field around those coils collapses rapidly. This collapse generates a sudden surge of reverse voltage. Engineers call this phenomenon flyback voltage or back EMF. Because motors act as generators when spinning down, they dump massive energy back into the driving circuit. Without an isolation buffer, these violent voltage spikes travel straight into your fragile logic-level components. This destroys the microcontroller instantly. Protective circuitry is non-negotiable when dealing with inductive components.
The Solution Architecture
The solution requires introducing a robust intermediary hardware layer. A motor driver receives low-power control signals, such as PWM or SPI, directly from the MCU. It translates these delicate instructions to switch high-power rails on and off. It uses internal or external transistors to handle the heavy lifting safely. The driver effectively isolates the sensitive brain of your system from the harsh realities of the motor coils. By keeping the high-voltage paths completely separate from the logic paths, you ensure long-term system stability.
Categorizing Motor Driver Solutions
By Integration Level
Engineers must carefully choose between fully integrated chips and external architectures based on power requirements.
Integrated Motor Drivers: These devices contain built-in power MOSFETs directly on the silicon die. They offer a highly compact footprint. They are ideal for space-constrained, low-to-medium power applications like desktop robotics or camera gimbals. However, their internal transistors severely restrict maximum heat dissipation.
Gate Drivers (Pre-drivers): These ICs do not switch the heavy motor current directly. Instead, they control the gates of large, external MOSFETs. They are absolutely required for high-power industrial applications. In heavy-duty scenarios, integrated thermal limits would be immediately exceeded. External MOSFETs allow for massive heatsinks and superior thermal management.
By Motor Topology
Your motor's internal winding structure completely dictates your driver choice. You cannot mix and match topologies arbitrarily.
Brushed DC Drivers (H-Bridges): These drivers focus on straightforward bidirectional control. They switch diagonal pairs of transistors inside an H-bridge configuration to reverse current flow. They are simple to implement and require minimal code overhead.

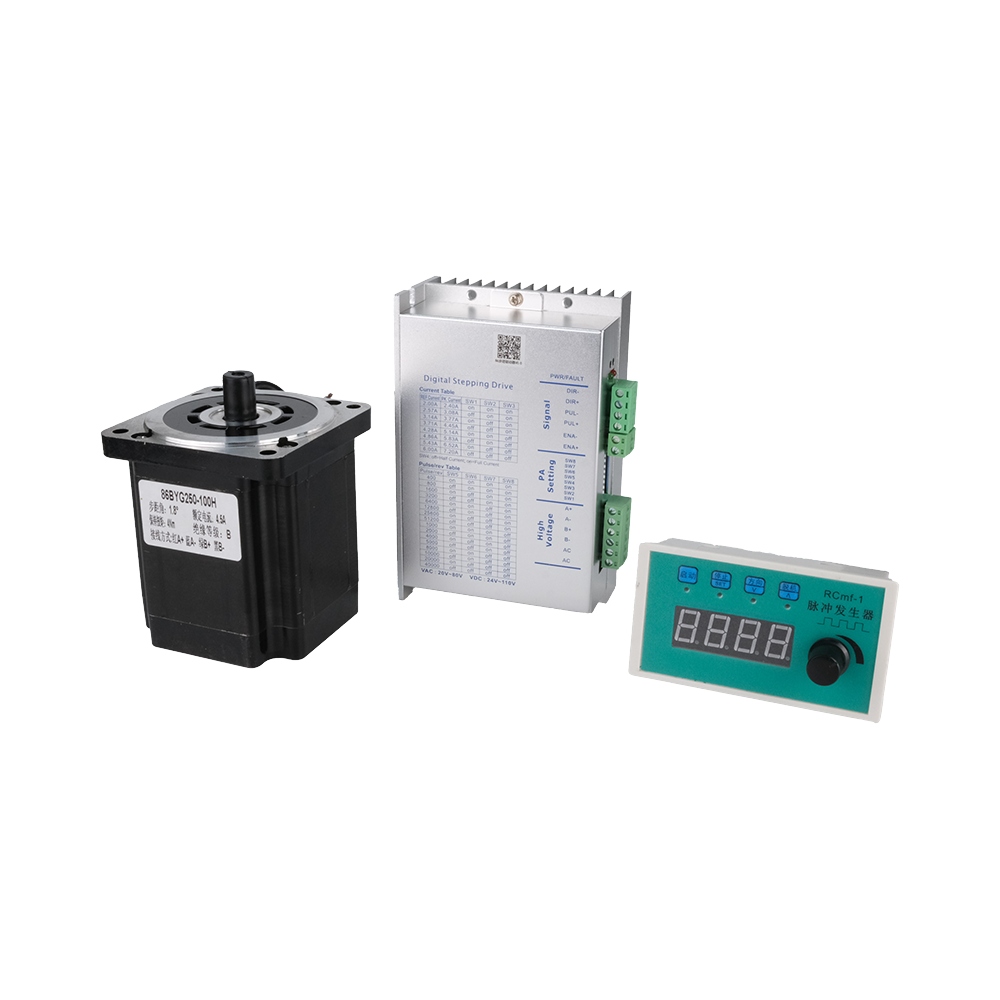

Stepper Motor Drivers: These modules focus on extreme precision and repeatable positioning. They feature advanced microstepping capabilities and internal indexers. They regulate current down to the milliampere. This precise control allows them to hold a specific shaft angle securely.
Brushless DC (BLDC) Drivers: These architectures are significantly more complex. They manage 3-phase control requiring precise electronic commutation. They might use physical Hall-effect sensors or rely on complex sensorless back-EMF detection algorithms. They demand much higher processing overhead and specialized gate drive timing mechanisms.
Key Evaluation Criteria for Vendor Shortlisting
Voltage and Current Headroom
Selecting the right component requires looking far past the marketing highlights on page one of a datasheet. You must rigorously evaluate continuous versus peak current ratings. A common, devastating mistake is sizing a system based solely on nominal running current. You must account for stall currents. When a motor physically jams against an obstacle, its current draw spikes dramatically to maximum levels. The driver must survive these severe transient events without melting. Additionally, thoroughly check the maximum operating voltage range. The component needs sufficient headroom above the nominal supply voltage. This extra margin handles power supply fluctuations and regenerative braking spikes safely.
Thermal Efficiency ($R_{DS(on)}$)
Thermal management dictates overall system reliability. The most critical parameter here is $R_{DS(on)}$, or the "On-Resistance" of the internal MOSFETs. Lower resistance is absolutely critical. According to Joule's First Law ($I^2R$), power loss scales with the square of the current. A high-resistance transistor generates excessive heat during operation. Lowering $R_{DS(on)}$ drastically reduces this dangerous thermal waste. It minimizes your need for bulky external heatsinks. For example, pushing 3 Amps through a 0.5-ohm FET generates 4.5 Watts of heat. Pushing the same current through a modern 0.05-ohm FET generates only 0.45 Watts. Always prioritize low on-resistance.
Control Interfaces
Consider how your main microcontroller will talk to the driver IC.
Interface Type | Complexity | Key Capabilities |
Hardware Pins (PWM/DIR) | Low | Basic speed and direction control. Easy to code. Zero diagnostic feedback. |
Serial Peripheral Interface (SPI) | High | Real-time fault reporting. Dynamic current scaling. Detailed configuration registers. |
Inter-Integrated Circuit (I2C) | Medium | Bus architecture support. Good for multiple drivers. Slower than SPI. |
Basic hardware pins rely on simple PWM and Direction signals. They are extremely easy to implement but offer zero operational feedback. Conversely, serial interfaces like SPI unlock advanced diagnostics. They allow you to scale current limits dynamically on the fly. They also report specific faults back to the MCU in real time, elevating system intelligence.
Critical Protection and Compliance Features
Reliable motion control systems require strict fail-safes. The IC must fail safely without destroying the motor or the main logic board. Look closely for these built-in hardware protections during your component evaluation phase.
Overcurrent Protection (OCP): This mechanism acts as an electronic fuse. It monitors current flowing through the output stages. It immediately cuts power if the current exceeds a hard pre-set limit. It prevents catastrophic hardware damage during motor stalls or sudden short circuits.
Thermal Shutdown (TSD): Silicon melts if it gets excessively hot. TSD circuitry continuously monitors the internal die junction temperature. It completely disables the driver outputs when temperatures exceed safe limits. This prevents a permanent hardware meltdown and allows the chip to recover once cooled.
Undervoltage Lockout (UVLO): When primary power supplies sag under heavy loads, internal transistors can enter a dangerous linear region and burn up. UVLO prevents this erratic switching behavior. It safely shuts down the entire chip when the supply voltage drops below stable operating thresholds.
Shoot-Through Protection (Cross-Conduction): Inside any H-bridge, the high-side and low-side FETs on the same leg must never turn on simultaneously. If they do, they create a direct, massive short circuit to ground. Shoot-through protection inserts intentional "dead time" between switching states. This ensures catastrophic short circuits never happen during rapid direction changes.
Implementation Risks and Prototyping Considerations
PCB Layout Realities
A flawless schematic does not guarantee a working prototype. The physical PCB layout entirely defines real-world thermal performance. Most surface-mount driver ICs rely almost completely on the PCB ground plane as their primary heatsink. They feature an exposed thermal pad underneath the package. If your layout features thin copper traces or insufficient thermal vias under this pad, you immediately invalidate the datasheet thermal ratings. The chip will overheat and trigger TSD far below its advertised maximum current limits. Always use wide pours, 2oz copper thickness if possible, and a dense array of thermal vias to move heat away from the silicon.
Decoupling and Bulk Capacitance
Switching large inductive loads rapidly generates violent electrical noise. You must place large bulk capacitors extremely close to the driver's power supply pins. These capacitors act as immediate local energy reservoirs. They handle high-frequency switching transients and prevent severe localized voltage dips. Ignoring proper bulk capacitance rules leads to disastrous results. You will experience false UVLO triggers, erratic motor behavior, and massive EMI issues. A good rule of thumb is using a mix of large electrolytic capacitors for bulk energy storage and smaller ceramic capacitors to filter high-frequency noise.
Legacy vs. Modern ICs
Avoid designing new systems around obsolete components like the notorious L293D or L298N. These legacy chips use aging bipolar junction transistors (BJTs). BJTs suffer from massive internal voltage drops. They convert a huge percentage of your input power directly into useless heat. They require massive, heavy aluminum heatsinks just to handle a few hundred milliamps. Modern DMOS or CMOS drivers use highly efficient MOSFETs. They run vastly cooler, preserve power efficiency, and deliver much higher peak currents in a fraction of the physical footprint.
Conclusion and Next Steps
Bringing a reliable motion control system to market requires careful, informed hardware selection. Choosing a robust motor driver requires precisely matching your motor's peak stall current and topology to the driver's thermal limits. You must never compromise on built-in protection features. Taking shortcuts on thermal management or circuit protections will inevitably result in field failures.
Audit your application's continuous running current and peak stall current requirements accurately.
Determine your logic control preferences early in the design phase (simple PWM vs. diagnostic-rich SPI).
Prioritize lowest possible $R_{DS(on)}$ to simplify your thermal management and reduce PCB size.
Compare modern datasheets from leading semiconductor vendors to verify built-in fail-safes like OCP and TSD.
FAQ
Q: Why do we need an additional power supply for a motor driver?
A: Motors draw significantly more current and higher voltage than logic boards can safely provide. A separate power supply isolates the sensitive logic components. It ensures sudden motor voltage drops or severe electrical noise do not reset or physically damage the microcontroller.
Q: What is the difference between a motor driver and a motor controller?
A: A driver is the "muscle" responsible for raw power delivery and high-voltage switching. A controller is the "brain." The controller generates the PWM logic, manages PID loops, and processes encoder feedback. Some modern ICs integrate both functions into a single chip.
Q: Why does my motor driver get so hot during operation?
A: Heat is primarily generated by the $R_{DS(on)}$ of the internal transistors and inherent switching losses. If temperatures exceed safe limits, you need a driver with a lower resistance rating. Alternatively, you must improve PCB thermal relief or upgrade to an external gate-driver architecture.
